Natural Rubber

Product Description

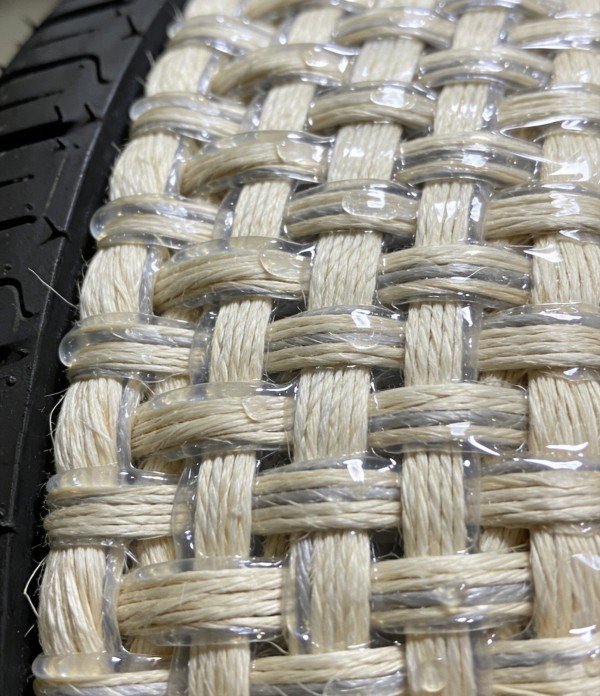

Aramid cord has large modulus of elasticity,high strength,low elongation,hightemperature resistant,wear resistant,impact resistance and etc,is new frameworkmaterial for rubberproducts,widely used in wrapped V belt,timing belt,poly V-belt,auto V-belt etc driving beltproduction,is better framework material instead of glasscord and polyester cord.

Applications:

Tire and Rubber Product Reinforcement
Automotive tire cord
Timing belt / transmission belt reinforcement
High-pressure rubber hose reinforcement
Rubber conveyor belt reinforcement
The purpose of impregnation is mainly to allow the aramid fiber to bond better with rubber materials.

Specifications

Product description	Yarn type	Construction	Breaking strength		Elongation at certain load	Hot shrinkage	Diameter
NR Dipped polyester soft cord			N	%	%	%	mm	g/100m	N
	HT	1000D/2X5 747		11.5 2.5(200N)		1.23 122			320	NR
		1000D/5X3	1155	11.2	2.4(300N)	4	1.5	181	340	NR
		1000D/6X3	1406	10.1	2.7(400N)	4.4 1.7		228	360	NR
		1000D/8X3	1857	10	2.4(500N)	4.3	2	295	380	NR
		1000D/9X3	2160	11.5 2.3(500N)		4.1	2.12	337 380		NR
		1000D/12X3	2886	11.5	1.7(500N)	4.1	2.45	442	390	NR
	HMLS	1000D/2X3	460	8.8	3.3(200N)	3	0.93	73	256	NR
		1000D/2X5 760 10 2.2(200N) 3 1.22 123							311	NR
		1000D/6X3	1340	9.7	2.5(400N)	2.8	1.63	218	333	NR
		1000D/9X3 1000D/2X3	2020 475	10 9	2.2(500N) 3.2(200N)	3 2.1 4.5 0.94		330 75	370 269	NR CR
